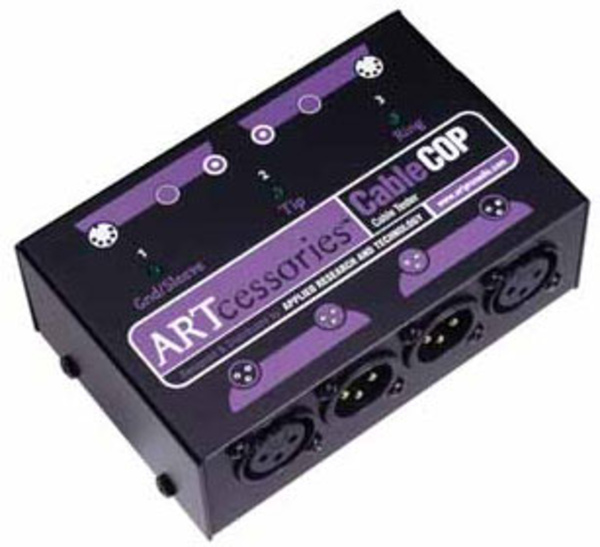

ART CableCop

Tester professionale per cavi audio: cannon xlr, jack, pin, midi, din…

There are several types of cables used widely in pro audio – mic cables and patch cords with 2 or 3 conductors, instrument cables with 2 conductors, basic speaker cables with 2 conductors and MIDI cables comprised of DIN5 connectors using 2 conductors.

The CableCOP features a full selection of standard pro audio connectors for testing all such cables. LEDs on the CableCOP link its various connector terminals and will only illuminate when the connected ‘cable’ completes a circuit. As a result you’re able to tell, at a glance, which cables need to be repaired. Sometimes the problem can be the cable itself. An LED may also fail to illuminate if a 3-conductor cable has been wired out-of-phase. As an example, if the Tip of one 1/4” TRS plug on a (balanced) patch cable were soldered to the same cable conductor as the Ring or Sleeve of the other 1/4” inch TRS plug.

Specs

Power Requirements 9V Battery (included)
Dimensions 3.75×2.5×1.5 inches (90mm x 63mm x 40mm)

Informazioni tecniche dettagliate sul sito del produttore: <a href=“http://www.artproaudio.com/default.asp?p1=3&p2=0&p_id=28&id=51”_blank">clicca qui
