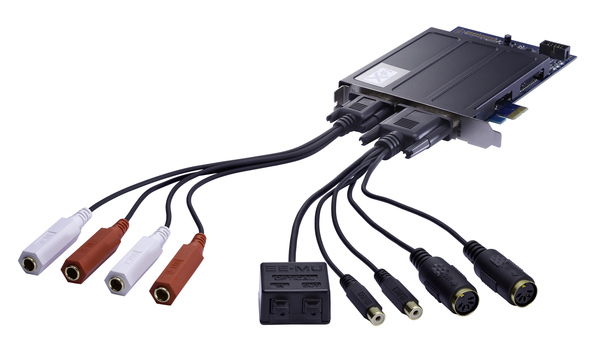

E-MU 0404 PCIe

Sistema desktop audio PCI express multicanale
2 in bilanciati 1/4"
2 out bilanciati 1/4"
I/O optical S/PDIF 24-bit/ 96khz (switchable to AES/EBU)
I/O coaxial S/PDIF 24-bit/ 192khz (switchable to AES/EBU)
MIDI I/O

Specifiche tecniche:

General
Sample Rates: 44.1, 48, 88.2, 96, 176.4, 192kHz from internal crystal or externally supplied clock (no sample rate conversion)
Bit Depths: 24-bit I/O, 32-bit processing
PCIe Specification:
- PCIe Base Specification 1.1 compliant
- Form Factor: Universal-keyed PCIe x1 Card
- 3.3V I/O
- PCIe Bus Mastering Subsystem reduces CPU Usage
E-MU E-DSP: 32-bit DSP with 67-bit accumulator (double precision w/ 3 headroom bits)
Processing: Hardware-accelerated, 32 channel mixing, and multi-effects processing
Hardware monitoring: Zero-latency direct hardware monitoring w/effects
Drivers: ASIO2, WDM/MME/DirectSound, and 64-bit Drivers
Anti-Pop speaker protection: Minimizes noise during power on/off
Ultra-low jitter clock subsystem: < 1ns in PLL mode (44.1kHz, Opt. S/PDIF Sync)

Analog Line Inputs (2)
Type: DC-coupled, low-noise input circuitry
A/D converter: PCM1804
OpAmp: NJM2068
Level: – 10dBV nominal, 6dBV max (unbalanced)
Frequency Response (20Hz-20kHz): + 0.20/-.10dB
Dynamic Range (1kHz, A-weighted): 111dB
Signal-to-Noise Ratio (A-weighted): 111dB
THD+N (1kHz at -1dBFS): -100dB (.0001%)
Stereo Crosstalk (1kHz at -1dBFS): < -120dB

Analog Line Outputs (2)
Type: Low-pass, 3-pole low-pass differential filter
D/A converter: AK4396
Level: – 10dBV nominal, 6dBV max (unbalanced)
Frequency Response (20Hz – 20kHz): 0.05/-.010dB
Dynamic Range (1kHz, A-weighted): 116dB
Signal-to-Noise Ratio (A-weighted): 116dB
THD+N (1kHz at -1dBFS): -100dB (.0001%)
Stereo Crosstalk (1kHz at -1dBFS): < -109dB

Digital I/O
S/PDIF:
- 2 in/2 out optical or coaxial (transformer coupled)
- AES/EBU or S/PDIF format (software selectable)
MIDI: – 1 in, 1 out

Synchronization
Internal crystal sync: 44.1, 48, 88.2, 96, 176.4, 192kHz
External sample rate sync: -S/PDIF (opt. or coax 44.1 – 96kHz)
SMPTE/LTC/MTC (via optional Sync Daughtercard):
- 24, 25, 30 drop-frame, 30 non-drop
- SMPTE to MTC, MTC to SMPTE Conversion
- SMPTE Striping
- Flywheel/Jam/Regenerate
S/PDIF: – 2 in/2 out optical or coaxial (transformer coupled)
- AES/EBU or S/PDIF format (software selectable)

Retail Box Contents
E-MU 0404 PCIe Card
E-MU Digital Audio System CD-ROM
Microsoft® Windows® XP, Windows Vista®, Vista x64 Drivers
E-MU PatchMix DSP
E-MU E-DSP Effects Library – Owner’s Manual and Tutorials
Analog I/O Cable Harness
Digital I/O Cable Harness

Minimum System Requirements
Intel® or AMD® processor – 1 GHz or faster
Intel, AMD or 100% compatible motherboard & chipset
Microsoft® Windows® XP (SP 3), Windows XP x64, Windows Vista® (SP1 or higher), Vista x64
256MB System RAM
900MB of free hard disk space for full installation
PCIe x1 Compliant slot for E-MU 1010 PCIe card (also compatible with x4, x8 or x16 PCIe slots)
CD-ROM/CD-RW or DVD-ROM drive required for software installation
XVGA Video (1024 X 768)
