Tascam US 200

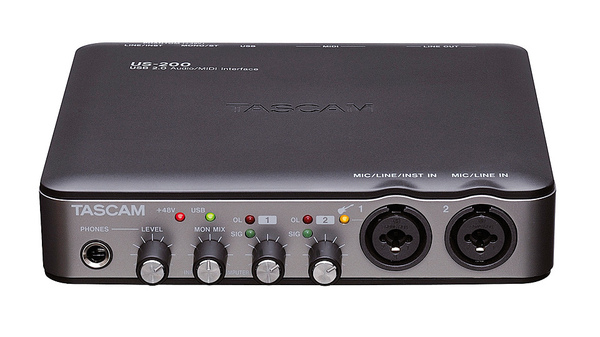

Interfaccia audio che offre 2 ingressi e 4 uscite con controlli sul pannello frontale. Gli ingressi analogici di tipo line/mic con Phantom 48v e le quattro uscite lavorano ad una frequenza di 96kHz a 24bit. Ideale per l’home studio ma può essere utile anche per gestire situazioni da vivo dove spesso sono necessarie più uscite per gestire segnali specifici.

La funzionalità direct monitoring consente l’ascolto a latenza zero. US-200 è
alimentata direttamente dal bus USB ed offre porte MIDI (IN ed OUT). Un led
indicatore di segnale ed overload è dedicato ad ogni ingresso, uno switch
mono/stereo e disponibile sul LINE IN 1 e 2 così come un monitor mix level per l’uscita cuffie ed il LINE OUT 1 e 2. E’ anche disponibile un ingresso INST ad alta impedenza per chitarra o basso e con un led dedicato. Nella confezione è offerto in bundle il software Cubase LE 5.

Caratteristiche tecnichi:

Input / Output Ratings
MIC/LINE/INST IN (balanced/unbalanced analog, front)
Connector: XLR/TRS combo jack

[MIC input]
Connector: XLR-3-31 (1: GND 2: HOT 3: COLD)
Nominal input level: -57 dBu (VR=max) to -14 dBu (VR=min)
Maximum input level: +2 dBu
Input impedance: 2.2 k ohm

[LINE input]
Connector: 6.3mm (1/4”) TRS jack
(Tip: HOT Ring: COLD Sleeve: GND)
Nominal input level: -39 dBu (VR=max) to + 4 dBu (VR=min)
Maximum input level: +20 dBu
Input impedance: 15 k ohm

[INST input] (input 1 only, unbalanced)
Connector: 6.3mm (1/4”) TRS jack
(Tip: HOT Ring: GND Sleeve: GND)
Nominal input level: – 56 dBV (VR=max) to – 13 dBV (VR=min)
Maximum input level: + 3 dBV
Input impedance: 1 M ohm

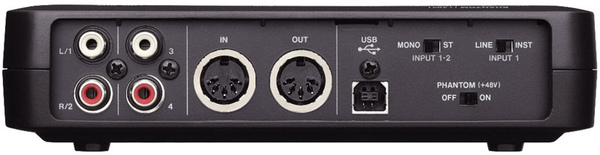

LINE OUT (unbalanced)
Connector: RCA pin jack
Nominal output level: – 10 dBV
Maximum output level: + 6 dBV
Output impedance: 200 ohm
Phones output
Connector: 6.3mm (1/4”) stereo phone jack
Maximum output level: 18 mW + 18 mW (1kHz, THD+N at 0.1%, 32 ohm loaded)

MIDI IN
Connector: DIN 5 pin
Format: MIDI

MIDI OUT
Connector: DIN 5 pin
Format: MIDI

USB
Connector: B type
Format: USB2.0 HIGH SPEED (480 MHz)

Audio performance
Frequency response:
44.1 / 48 kHz 20Hz – 20kHz, +0.5 dB / -1.0dB
88.2 / 96 kHz 20Hz – 40kHz, +0.5 dB / -1.5dB
S/N ratio:
Through ADC and DAC 98 dB or greater (MIC/LINE IN to LINE OUT, TRIM=min)
Direct monitor 107 dB or greater (MIC/LINE IN to LINE OUT, TRIM=min)
Total Harmonic Distortion: Less than 0.0045% (1 kHz, 20 kHz LPF)
Channel separation:
Through ADC and DAC Greater than 95dB (1 kHz, +20dBu, LINE IN to LINE OUT)
Through ADC and DAC Greater than 90dB (10 kHz, +20dBu, LINE IN to LINE OUT)
Direct monitor Greater than 90dB (1 kHz, +20dBu, LINE IN to LINE OUT)
Direct monitor Greater than 80dB (10 kHz, +20dBu, LINE IN to LINE OUT)

General
Sampling frequency: 44.1 / 48 / 88.2 / 96 kHz
Resolution: 24 – bit
Power: Supplied via USB
Power consumption: 2.5W
Dimension (W x H x D): 172 × 44 × 164.3 mm
Weight: 0.5 kg

Computer requirements
[Windows]
Supported operation system: Windows XP 32/64, Windows Vista 32/64,
Windows 7 32/64
Supported computer system: Pentium or Athlon 1GHz, 1GB memory, USB2.0 port
Supported drivers: ASIO2, WDM (MME)

[Macintosh]
Supported operation system: OS10.5.8 or later, OS10.6.3 or later
Supported computer system: Apple Macintosh series equipped with a USB port as standard equipment
Supported drivers: Core Audio, Core MIDI
