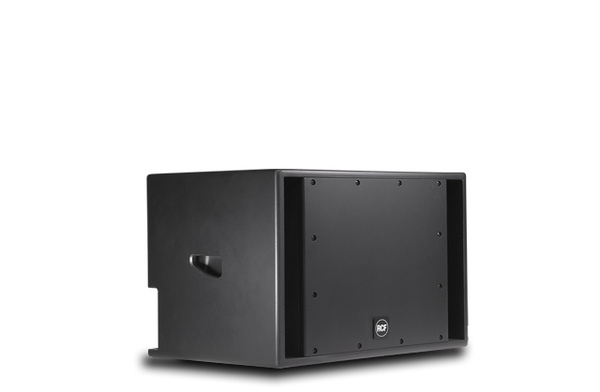

RCF S 4012

The S4012 high-efficiency band pass subwoofer is the ideal bass frequency extension to complement the RCFACUSTICA Compact series two-way loudspeakers for small size installations and distributed music systems.

The low-frequency transducer is an RCF Precision high-power 12” woofer with a 3” inside/outside voice coil to minimize power compression and extend the life of the product.
This new woofer design guarantees a fast and controlled reproduction of the bass frequency range. Using bandpass loading to the transducer, the subwoofer design ensures an efficient acoustic response down to 45 Hz.
The cabinet features two Neutrik Speakon™ connectors in a recessed input plate.

Features:
- Woofer da 12" con bobina inside/outside da 3" ad alta efficenza
- Woofer reflex caricato a tromba
128 dB max SPL
- Risposta in frequenza fino a 45 Hz
- Mobile rettangolare con protezione metallica
- Cabinet in multi strato di Betulla del Baltico protetto con vernice epossidica ad alta resistenza
- Inserto per pole mount
- Maniglie incassate

Specifications:

- ACOUSTICAL SPECIFICATIONS:
Frequency Response -10 dB: 45 Hz ÷ 0.2 kHz
Max SPL @ 1m: 128 dB
System Sensitivity: 96 dB
Nominal Impedance: 8 Ω
Power Handling: 400 Watt
Peak Power Handling: 1200 Watt
Recommended Amplifier: 800 Watt

- TRANSDUCERS
Woofer: 12" woofer, 3" voice coil
Nominal Impedence: 8 Ω
Input Power Rating: 400 Watts AES
Sensitivity: 97 dB

- INPUT SECTION
Input connector: Speakon NL4

- CABINET
Cabinet Material: 15 mm birch plywood construction
Handles: 2 on side
Pole Mount/Cap: Yes
Grille: Custom perforated steel grille
Colour: Black, scratch resistant paint

- PHISICAL SPECIFICATION
Height: 360 / 14.17 mm/inch
Width: 500 / 19.69 mm/inch
Depth: 400 / 15.75 mm/inch
Net Weight: 20 / 44 Kg/Lbs
