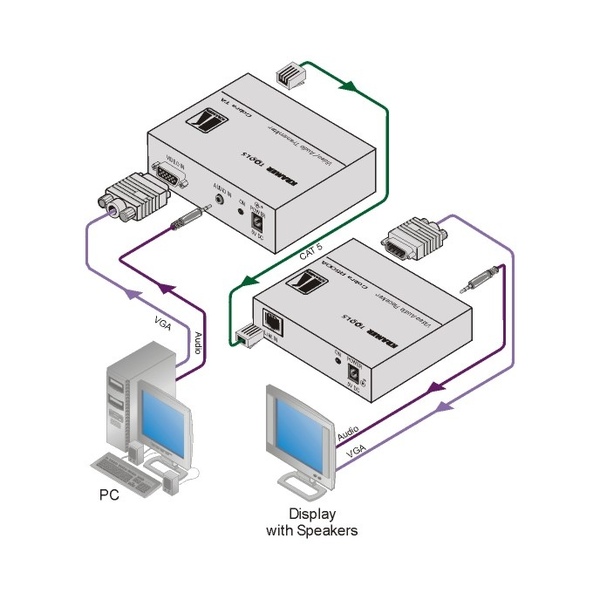

The Cobra R500A is a twisted pair receiver for multi-format video and mono audio signals. The unit converts a twisted pair signal back into its original video format (composite video, s-Video, component video and computer graphics video) and two channels of mono (summed stereo) audio.
- CABLE REQUIRED: – Cat 5, 5e, 6 schermato o non schermato twisted pair
- Risoluzione
fino aUXGA (1600×1200).HDTV Compatibile.Ingresso – RJ-45.Uscita 15-pin HD e 2 mini jack3.5mm .15-pin HD -Cavo breakoutper CV, Y/C & componenti.Uscite Audio – 2 mono .EQ Controllo – 4 dip switch di selezione.System Range – 152m a risoluzioneUXGA (1600×1200).Usare Kramer BC-HDTP Cavo Ultra Low Skew UTP.Kramer TOOLS™ – Built-in mounting bracket.
- COMPLIANCE: – CE; FCC Class A, IC Class/class A
- VIDEO SUPPORT: – UXGA (1600×1200 @ 60Hz), RGBHV, RGB, Composito, s-Video, Componenti
- MAXIMUM RESOLUTION ANDREFRESH RATE: – fino a 152 m, 1600 × 1200 a 70Hz
- REQUIRED SOURCE IMPEDANCE: – Video OUT: 75 ohms;
Audio OUT: 600 ohms max
- REQUIRED DESTINATION IMPEDANCE: – Video IN: 75 ohms;
Audio IN: 600 ohms minimo
- AUDIO CHARACTERISTICS: – Canali: Right/Livello di linea 600 Ohm sbilanciato
- CONNECTORS: – (1) 3.5-mm, (1) RJ-45, (1) HD15 F
- TEMPERATURE TOLERANCE: – Operatività: 0 a 40°C;
Storage: -20 a +60°C.
- HUMIDITY TOLERANCE: – 80% non condensata
- ENCLOSURE: – Acciaio
Applicazioni:
Multimedia
Presentazione
Sicurezza, scuole, ospedali
home cinema
Specifiche:
Caricamento Dati…
*
The Cobra R500A is a twisted pair receiver for multi-format video and mono audio signals. The unit converts a twisted pair signal back into its original video format (composite video, s-Video, component video and computer graphics video) and two channels of mono (summed stereo) audio.
o
CABLE REQUIRED: – Cat 5, 5e, 6 schermato o non schermato twisted pair
o Risoluzione
fino aUXGA (1600×1200).HDTV Compatibile.Ingresso – RJ-45.Uscita 15-pin HD e 2 mini jack3.5mm .15-pin HD -Cavo breakoutper CV, Y/C & componenti.Uscite Audio – 2 mono .EQ Controllo – 4 dip switch di selezione.System Range – 152m a risoluzioneUXGA (1600×1200).Usare Kramer BC-
HDTP Cavo Ultra Low Skew
UTP.Kramer TOOLS™ – Built-in mounting bracket.
o
COMPLIANCE: – CE;
FCC Class A, IC Class/class A
o
VIDEO SUPPORT: –
UXGA (1600×1200 @ 60Hz),
RGBHV,
RGB, Composito, s-Video, Componenti
o
MAXIMUM RESOLUTION ANDREFRESH RATE: – fino a 152 m, 1600 × 1200 a 70Hz
o
REQUIRED SOURCE IMPEDANCE: – Video
OUT: 75 ohms;
Audio
OUT: 600 ohms max
o
REQUIRED DESTINATION IMPEDANCE: – Video IN: 75 ohms;
Audio IN: 600 ohms minimo
o
AUDIO CHARACTERISTICS: – Canali: Right/Livello di linea 600 Ohm sbilanciato
o
CONNECTORS: – (1) 3.5-mm, (1) RJ-45, (1) HD15 F
o
TEMPERATURE TOLERANCE: – Operatività: 0 a 40°C;
Storage: -20 a +60°C.
o
HUMIDITY TOLERANCE: – 80% non condensata
o
ENCLOSURE: – Acciaio
*
INPUTS: 1
CAT 5 on an RJ-45 connector.
OUTPUTS: 1 video: composite, component, s-Video, and computer graphics on a 15-pin HD (F) connector; 1 stereo audio on a 3.5mm mini jack.
MAX RESOLUTION &
REFRESH RATE:
UXGA & 720p/1080i @ 60Hz at 150m at 500ft.
WEIGHT: 0.26 kg
AUDIO CHARACTERISTICS: Channels: Right/Left summed; Line level 600Ω unbalanced.
REQUIRED SOURCE IMPEDANCE: Video
OUT: 75Ω; Audio
OUT (if any): 600Ω max.
POWER: +5
VDC @ 260 mA max
Assorbimento: 1.3 watts max
SIZE: (2.2 × 7.9 × 9.5 cm
POWER: +5V DC @260mA max; Consumption: 1.3W max.
DIMENSIONS: 2.2cm x 7.9cm x 9.5cm (0.88″ × 3.12″ × 3.75″) W, D, H.
WEIGHT: 0.26kg (0.56lb).
ACCESSORIES: Power supply.
