Kramer Cobra-TA

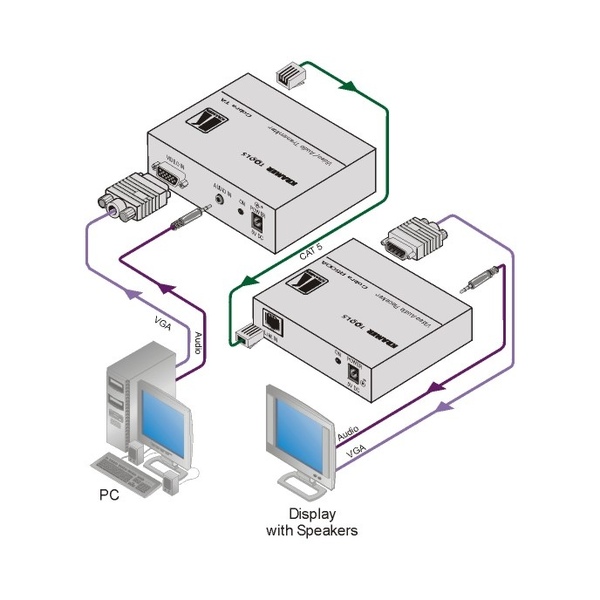

The Cobra TA is a twisted pair transmitter for multi-format video and stereo audio signals. The unit converts composite video, s-Video, component video or computer graphics video, combines (sums) the stereo into mono audio and converts both signals into a twisted pair signal.

• CABLE REQUIRED: – Cat 5, 5e, 6 twisted pair Schermato o non schermato
• Risoluzione fino aWUXGA (1920×1200).HDTV Compatibile.Ingresso – 15-pin HD per video multiformatoe 3.5mmper2 audio mono.15-pin HD Usarecavo a frusta per discriminare i formati video.Uscita- RJ-45.Audio -L’audio stereoè convertitoin L+R (2mono).System Range -dipendente dal ricevitore.Usare cavoKramer BC-HDTP Ultra Low Skew UTP per ottimizzare.Kramer TOOLS™ – adattatbile a 19" Rack
• COMPLIANCE: – CE; FCC Classe A, IC Classe/classe A
• VIDEO SUPPORT: – RGBHV, RGB, Composito, S-Video, Componenti
• MAXIMUM RESOLUTION ANDREFRESH RATE: – To 1920×1200 @ 60Hz (dipendente dal tipo di ricevitore)
• REQUIRED SOURCE IMPEDANCE: – Video: 75 ohms;
  Audio: 600 ohms max
• REQUIRED DESTINATIONIMPEDANCE: – Video: 75 ohms
  Audio: 600 ohms minimo
• AUDIO CHARACTERISTICS: – Canali: R/L sommati;
  Livello Linea 600 Ohm sbilanciato
• CONNECTORS: – (1) 3.5-mm, (1) RJ-45, (1) HD15 F
• TEMPERATURETOLERANCE: – Operativa: 0 a 55°C;
  Memoria: -20 a +60°C

Applicazioni:

Multimedia
Presentazione
Sistemi di Distribuzione
home cinema

Specifiche:

INPUTS: 1 composite, component, s-Video, and computer graphics video on a 15-pin HD (F) connector; 1 unbalanced stereo audio on a 3.5mm mini jack.
OUTPUTS: 1 CAT 5 on an RJ-45 connector.
Consumption: 1.3 watts max
POWER: +5 VDC @ 260 mA max
AUDIO CHARACTERISTICS: Channels: Right/Left summed; Line Level 600Ω unbalanced.
SIZE: 3.5×9.2×11.1 cm
HUMIDITYTOLERANCE: Up to 80% non condensata
ENCLOSURE: Acciaio
POWER: +5V DC @260mA max.
DIMENSIONS: 3.5cm x 9.2cm x 11.1cm (1.4″ × 3.6″ × 4.3″) W, D, H.
WEIGHT: 0.28kg (0.62lb).
ACCESSORIES: Power supply.
OPTIONS: Cobra TM-4 19" rack adapter or Cobra TMW mounting bracket.
